100W Fiber XY Axis Visual Positioning Laser Clean Machine
100W Fiber XY Axis Visual Positioning Laser Clean Machine
100W Fiber XY Axis Visual Positioning Laser Clean Machine

100W Fiber XY Axis Visual Positioning Laser Clean Machine

The 100W Fiber Laser Cleaning Machine features precise XY axis motion and visual positioning for accurate, non-contact surface cleaning. Ideal for rust, paint, and oxide removal, it offers high efficiency, low maintenance, and eco-friendly operation. Suitable for metal surfaces, molds, and industrial restoration applications.

  • Marke :

    ACEY
  • Art.-Nr. :

    ACEY-G100W
  • Anpassung :

    OEM&ODM Available
  • Bestellung (MOQ) :

    1 Set
  • Einhaltung :

    CE Certified
  • Zahlung :

    T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, Etc
  • Garantie :

    T/T, L/C, PayPal, West Union, Alibaba Trade Assurance, Etc
  • Produktherkunft :

    China
  • Paket :

    Internal: Anti-Collision Protectio, External: Plywood Case
  • Sendung :

    By Air, Sea, Express, etc.





100W Fiber XY Axis Visual Positioning Laser Clean Machine



Product Description

The 100W Fiber Laser Cleaning Machine with XY axis visual positioning is a high-precision, non-contact cleaning system designed for efficient surface treatment. Equipped with an integrated motion platform and industrial camera, it enables automatic identification and positioning of cleaning areas. The fiber laser delivers stable output, fast cleaning speed, and minimal damage to substrates, making it ideal for rust removal, paint stripping, oxide layer cleaning, and pre-weld treatment on various metal surfaces. Compact in design, energy-efficient, and environmentally friendly, this system is widely used in aerospace, automotive, electronics, and mold industries.



Main technical parameters

Optical maser wavelength 1064nm
Laser power 100W
Laser repetition rate 20KHZ-80KHZ

Marking speed

≤8000mm

Repeated accuracy

±0.1mm

Marking line depth

≤0.5mm

Min character

0.05mm

Standard marking range

500*500mm

Minimum Focused Spot Diameter

0.005mm

Type of cooling Forced air cooling
Power consumption of the whole machine 500W
Power supply

220V±22V / 50Hz / 12A

Machine weight, size 150KG900mm*700mm*1600mm

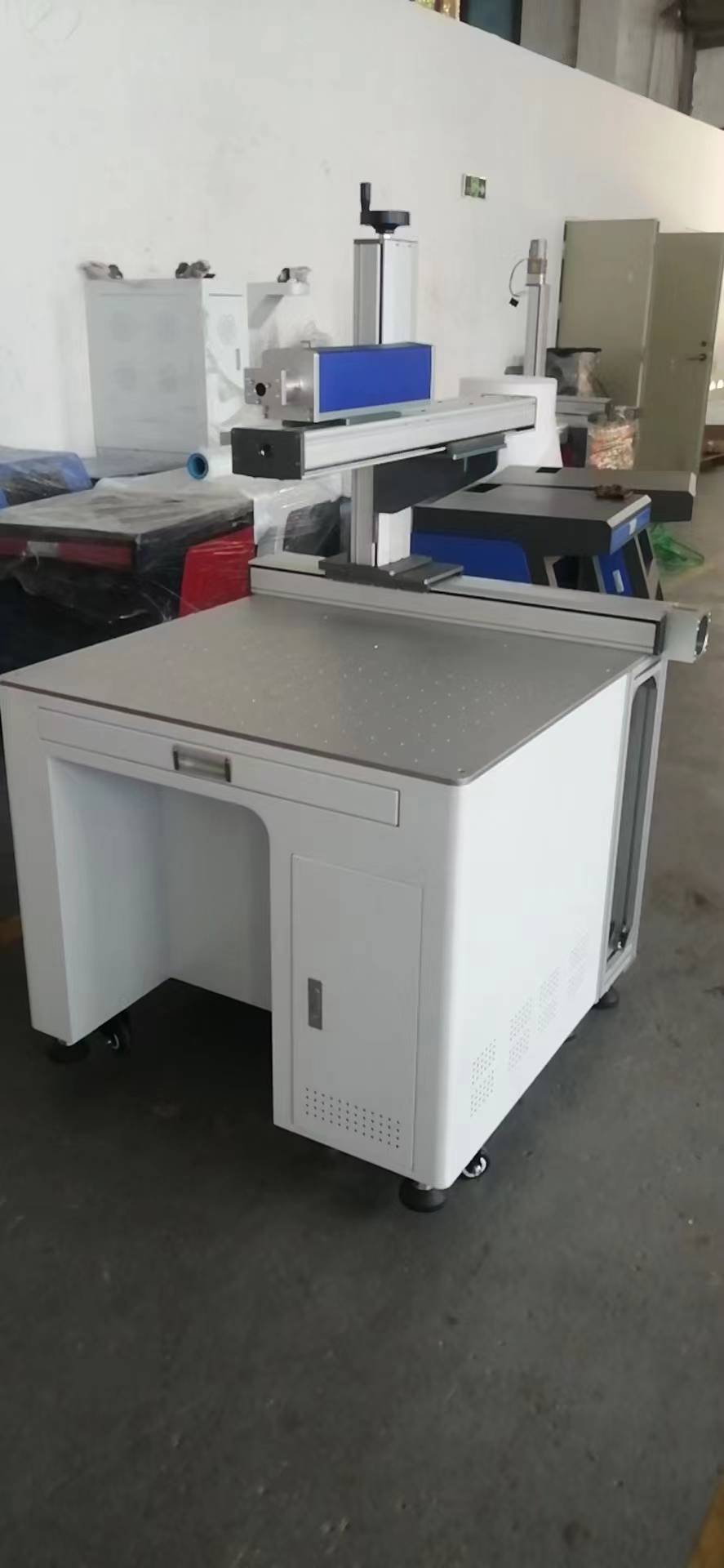

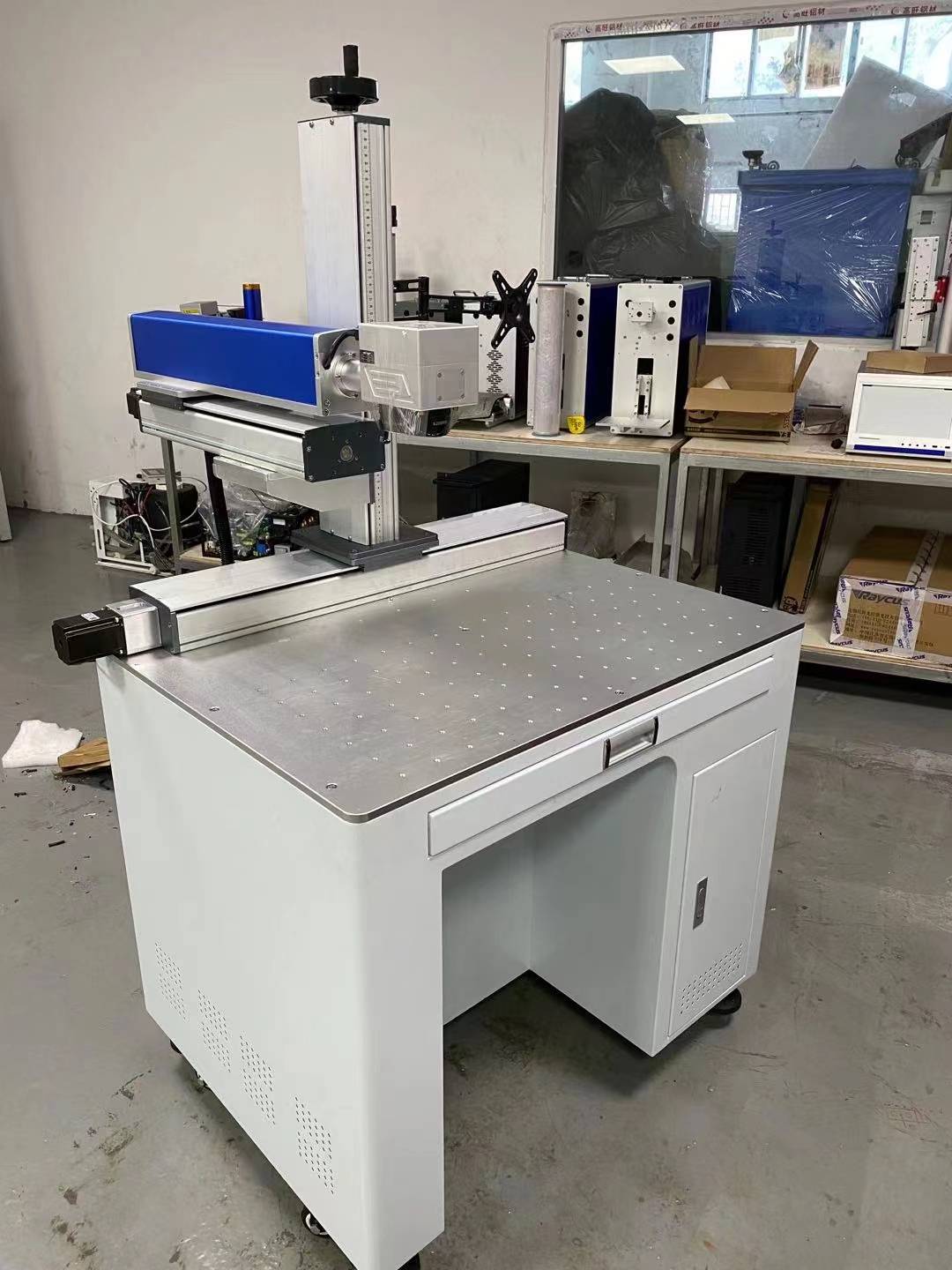

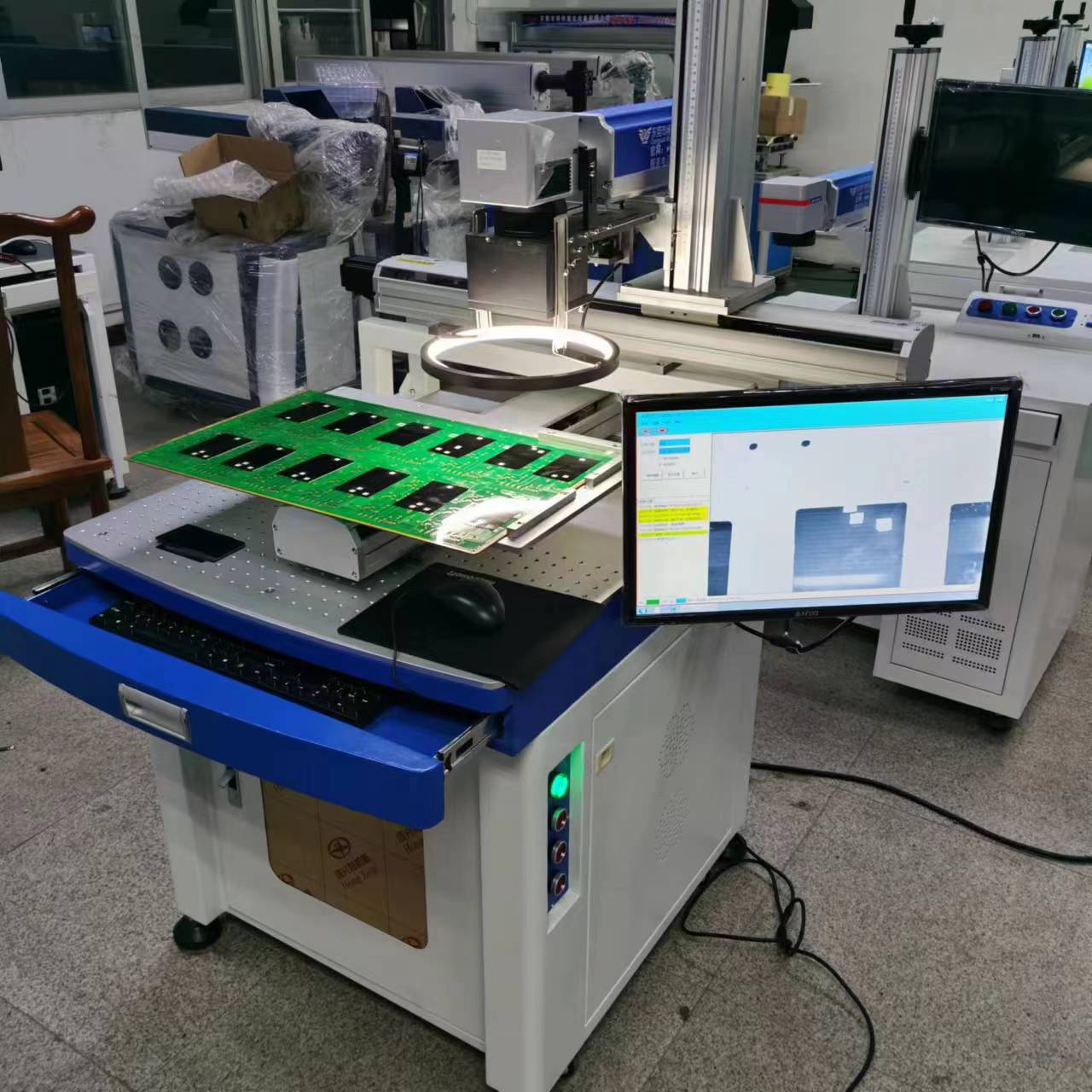

Product Display
